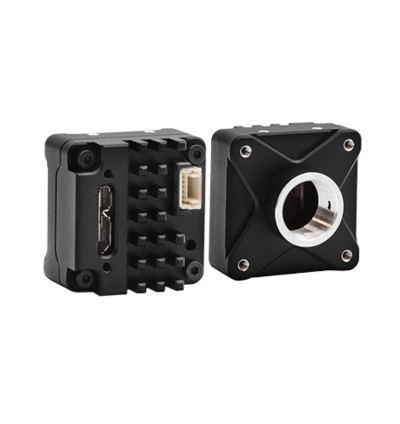

Teledyne DR USB3: 5 MP, Global Shutter, Mono, S-mount, Back Camera
.jpg)
The Dragonfly USB3 (5 MP, Mono) camera provides compact, high-quality monochrome imaging for embedded vision systems, handheld devices, and multi-camera applications. Featuring the Sony IMX568 CMOS sensor with global shutter technology, this model supports sharp image capture for applications that require reliable detail, controlled motion imaging, and consistent frame delivery.
The DR-U3-50S4M-C1-S is designed with an S-mount lens interface and a back USB3 connector orientation, making it a practical choice for space-conscious OEM designs. Its lightweight architecture, onboard image buffering, and flexible acquisition modes support machine vision applications such as automated optical inspection, 3D scanning, biometric systems, life science instrumentation, and factory automation.
TECHNICAL INFORMATION:
- Megapixels: 5.0 MP
- Resolution: 2448 x 2048
- Frame Rate: 46 FPS
- Sensor: Sony IMX568
- Sensor Type: CMOS
- Sensor Format: 1/1.8"
- Pixel Size: 2.74 µm
- Shutter Type: Global shutter
- Spectrum: Mono
- Lens Mount: S-mount
- Data Interface: USB 3.1 Micro-B, side connector
- Image Buffer: 96 MB
- Acquisition Modes: Continuous / Single Frame / Multi Frame
Quick Info for the Teledyne DR USB3: 5 MP, Global Shutter, Mono, S-mount, Back
| Camera Category: | Area Scan |
|---|---|
| Camera Series: | Dragonfly S USB3 |
| FPS: | 46 |
| Interface: | USB 3.1 |
| Manufacturer: | Teledyne |
| Resolutions: | 2448 × 2048 |
| Sensor: | Sony IMX568 |
| Technology: | Board Level Cameras |
