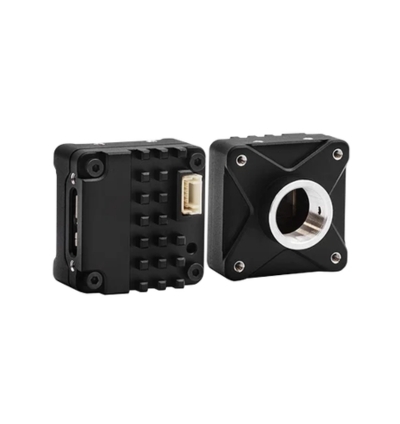

Teledyne DR USB3: 5 MP, Global Shutter, Mono, S-mount, Side Camera
.jpg)
The Dragonfly USB3 (5 MP, Mono) S-mount camera is designed for embedded and handheld vision systems where compact placement, monochrome image quality, and stable USB3 performance are essential. Built with the Sony IMX568 CMOS sensor, this model delivers 5 MP resolution and global shutter capture for applications that require sharp imaging of moving parts, fine details, or high-contrast subjects.
The DR-U3-50S4M-C3-S features an S-mount lens interface and side USB3 connector orientation, giving developers more flexibility when routing cables inside tight mechanical designs. Its compact construction, 96 MB image buffer, and continuous, single frame, and multi-frame acquisition modes make it a strong fit for OEM devices, inspection systems, life science instruments, biometric platforms, and space-limited automation equipment.
TECHNICAL INFORMATION:
- Megapixels: 5.0 MP
- Resolution: 2448 x 2048
- Frame Rate: 46 FPS
- Sensor: Sony IMX568
- Sensor Type: CMOS
- Sensor Format: 1/1.8"
- Pixel Size: 2.74 µm
- Shutter Type: Global shutter
- Spectrum: Mono
- Lens Mount: S-mount
- Data Interface: USB 3.1 Micro-B, side connector
- Image Buffer: 96 MB
- Acquisition Modes: Continuous / Single Frame / Multi Frame
Quick Info for the Teledyne DR USB3: 5 MP, Global Shutter, Mono, S-mount, Side
| Camera Category: | Area Scan |
|---|---|
| Camera Series: | Dragonfly S USB3 |
| FPS: | 46 |
| Interface: | USB 3.1 |
| Manufacturer: | Teledyne |
| Resolutions: | 2448 × 2048 |
| Sensor: | Sony IMX568 |
| Technology: | Board Level Cameras |
