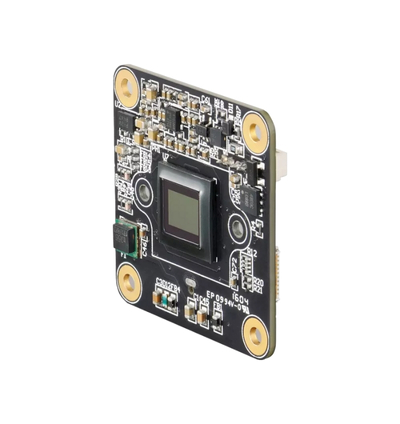

The Imaging Source DFM 27UR0135-ML Camera

This 27U Series color board camera pairs a USB 3.0 interface with the onsemi AR0135 global-shutter CMOS sensor to deliver 1.2 MP color imaging at up to 60 fps. Large 3.75 µm pixels support clean capture with accurate color, while trigger and I/O inputs make system synchronization straightforward. Power via USB and a compact 30×30×10 mm footprint simplify integration for embedded and machine vision designs using standard C/CS lenses.

TECHNICAL INFORMATION:

• Dynamic Range: 8/12 bit
• Resolution: 1,280×960 (1.2 MP)
• Frame Rate: 60 fps
• Video Formats @ Frame Rate (maximum): 1,280×960 (1.2 MP) Y800 @ 60 fps; 1,280×960 (1.2 MP) Y16 @ 60 fps; 1,280×960 (1.2 MP) RGB32 @ 60 fps
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR0135
• Shutter: Global
• Format: 1/3 inch
• Pixel Size: H: 3.75 µm, V: 3.75 µm
• Lens Mount: C/CS
