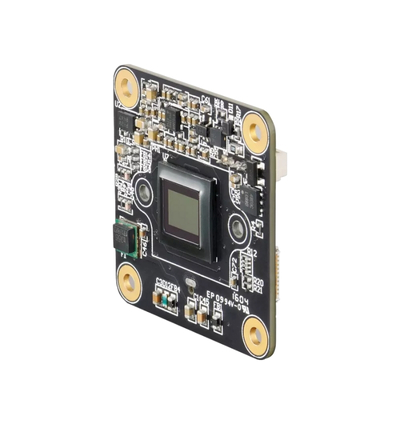

The Imaging Source DMM 27UR0135-ML Camera
Part Number(s): USB 3.0 monochrome board camera with onsemi AR0135 global shutter, 1.2 MP at 60 fps, 3.75 µm pixels, trigger and I/O, compact
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
This compact 27U Series monochrome board camera pairs a USB 3.0 interface with the onsemi AR0135 global-shutter CMOS sensor to deliver 1.2 MP images at up to 60 fps. Generous 3.75 µm pixels support clean, low-noise capture, and C/CS lens compatibility gives you broad flexibility in optics selection. Trigger and I/O inputs simplify precise system synchronization, while USB power and a 30×30×10 mm footprint streamline integration in space-constrained embedded and machine vision designs.
TECHNICAL INFORMATION:
- Dynamic Range: 8/12 bit
- Resolution: 1,280×960 (1.2 MP)
- Frame Rate: 60 fps
- Video Formats @ Frame Rate (maximum): 1,280×960 (1.2 MP) Y800 @ 60 fps; 1,280×960 (1.2 MP) Y16 @ 60 fps
- Interface (Optical)
- Sensor Type: CMOS
- Sensor Specification: onsemi AR0135
- Shutter: Global
- Format: 1/3 inch
- Pixel Size H: 3.75 µm, V: 3.75 µm
- Lens Mount: C/CS
Quick Info for the The Imaging Source DMM 27UR0135-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 27U Series |
| FPS: | 60 |
| Manufacturer: | The Imaging Source |
| Resolutions: | 1.2 MP |
| Scanning Mode: | Global Shutter |
