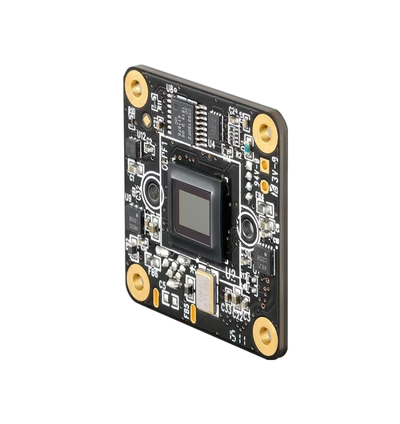

The Imaging Source DMM 42BUC03-ML Camera

This 2U Series monochrome board camera combines a USB 2.0 interface with the onsemi AR0134 global-shutter CMOS sensor to deliver 1.2 MP at up to 25 fps. Its 3.75 µm pixels support clean, low-noise capture, while trigger and I/O inputs enable precise synchronization in multi-device systems. Power via USB and a compact 30×30×15 mm design simplify integration for cost-sensitive embedded and machine vision applications using an optional M12 lens mount.

TECHNICAL INFORMATION:

• Dynamic Range: 8 bit
• Resolution: 1,280×960 (1.2 MP)
• Frame Rate: 25 fps
• Video Formats @ Frame Rate (maximum): 1,280×960 (1.2 MP) Y800 @ 25 fps; 1,280×960 (1.2 MP) RGB24 @ 25 fps
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR0134
• Shutter: Global
• Format: 1/3 inch
• Pixel Size: H: 3.75 µm, V: 3.75 µm
• Lens Mount: M12x0.5, optional
