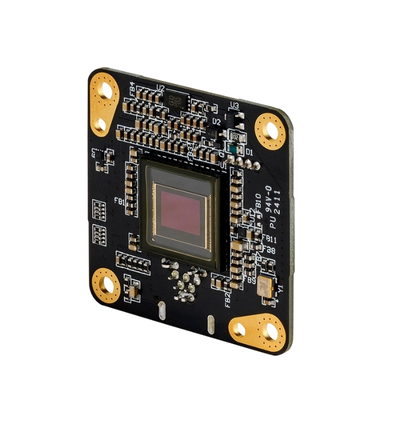

The Imaging Source DFM 32UR0234-ML Camera

The DFM 32UR0234-ML is a compact, high-quality color board camera engineered for precision imaging in embedded and industrial systems. Powered via USB 2.0, it features the onsemi AR0234CS CMOS sensor, delivering vibrant and low-noise color images with a global shutter for distortion-free capture of fast-moving subjects. Offering 2.3 MP resolution at up to 13 fps, this versatile camera combines excellent image clarity, robust performance, and a small 30 × 30 × 15 mm footprint—making it ideal for machine vision, automation, and inspection applications where space and accuracy matter.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 10 bit
• Resolution: 1,920 × 1,200 (2.3 MP)
• Frame Rate: Up to 13 fps
• Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Lens Mount: M12 × 0.5 (optional)
• Interface: USB 2.0 (power via USB)
• Trigger & I/O Inputs: Supported
• Dimensions: 30 × 30 × 15 mm
