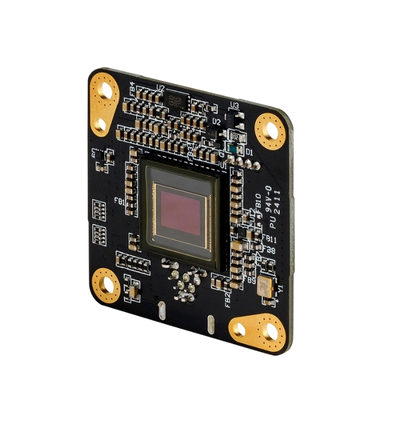

The Imaging Source DFM 32UR0234-MLA Camera

The DFM 32UR0234-MLA is a compact color board-level camera designed for embedded and industrial imaging applications requiring precision, flexibility, and ease of integration. Featuring an angled USB 2.0 connector for streamlined installation, it is powered directly via USB and incorporates the onsemi AR0234CS CMOS sensor to deliver crisp, color-accurate images.
Its global shutter enables distortion-free capture of fast-moving objects, while the 2.3 MP resolution at up to 13 fps ensures exceptional clarity and performance. Compact and reliable, the 30 × 30 × 15 mm housing makes this camera ideal for OEM, automation, and inspection environments.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 10 bit
• Resolution: 1,920 × 1,200 (2.3 MP)
• Frame Rate: Up to 13 fps
• Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Lens Mount: M12 × 0.5 (optional)
• Interface: USB 2.0 (angled connector, power via USB)
• Trigger & I/O Inputs: Supported

• Dimensions: 30 × 30 × 15 mm
