The Imaging Source DFM 32UR0521-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

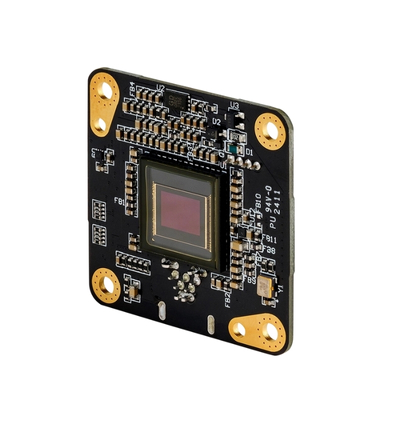

The DFM 32UR0521-ML is a compact color board-level camera designed for high-resolution imaging in embedded and industrial applications. Featuring the onsemi AR0521 CMOS sensor, it delivers crisp, detailed 5 MP images with excellent color accuracy and low noise. Powered via a USB 2.0 interface, this camera offers a rolling shutter for high-quality still capture and controlled-motion imaging. Its compact 30 × 30 × 15 mm form factor and integrated trigger and I/O support make it a versatile choice for automation, inspection, and vision-based system integration.
TECHNICAL INFORMATION:
- Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
- Dynamic Range: 12 bit
- Resolution: 2,592 × 1,944 (5 MP)
- Frame Rate: Up to 6 fps
- Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
- Sensor Type: CMOS
- Sensor Model: onsemi AR0521
- Shutter Type: Rolling
- Optical Format: 1/2.5 inch
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Lens Mount: M12 × 0.5 (optional)
- Interface: USB 2.0 (power via USB)
- Trigger & I/O Inputs: Supported
- Dimensions: 30 × 30 × 15 mm
Quick Info for the The Imaging Source DFM 32UR0521-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 32U Series |
| FPS: | 6 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
