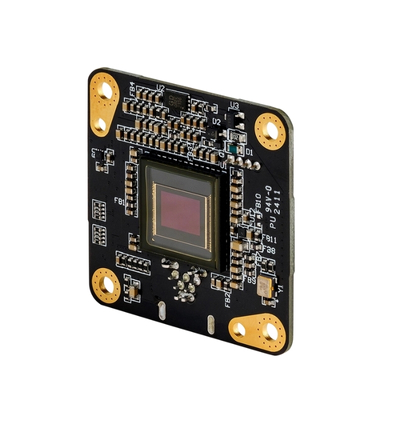

The Imaging Source DFM 32UR0521-MLA Camera

The DFM 32UR0521-MLA is a high-quality color board camera designed for embedded and industrial imaging applications that require compact form and dependable performance. Featuring an angled USB 2.0 connector for easy integration and powered directly via USB, it incorporates the onsemi AR0521 CMOS sensor to deliver rich, detailed 5 MP images at up to 6 fps.
With its rolling shutter, precise color reproduction, and compact 30 × 30 × 15 mm housing, this camera is ideal for OEM systems, automation, inspection, and machine vision environments where space efficiency and imaging reliability are essential.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 12 bit
• Resolution: 2,592 × 1,944 (5 MP)
• Frame Rate: Up to 6 fps
• Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
• Sensor Type: CMOS
• Sensor Model: onsemi AR0521
• Shutter Type: Rolling
• Optical Format: 1/2.5 inch
• Pixel Size: H: 2.2 µm, V: 2.2 µm
• Lens Mount: M12 × 0.5 (optional)
• Interface: USB 2.0 (angled connector, power via USB)
• Trigger & I/O Inputs: Supported
• Dimensions: 30 × 30 × 15 mm
