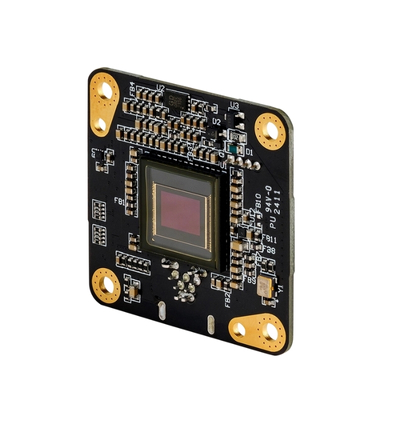

The Imaging Source DFM 32UVR024-ML Camera

The DFM 32UVR024-ML is a high-speed color board camera engineered for demanding embedded and industrial imaging applications. Featuring the onsemi AR0234CS CMOS sensor and USB 2.0 interface, it delivers sharp, low-noise images with a global shutter—perfect for capturing fast motion without distortion. Its 0.4 MP resolution (binned from 3 µm pixels) enables exceptional light sensitivity and performance at up to 89 fps, while the compact 30 × 30 × 15 mm design ensures effortless integration into space-limited systems. Ideal for inspection, automation, and machine vision environments requiring high frame rates and color precision.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 10 bit
• Resolution: 744 × 480 (0.4 MP)
• Frame Rate: Up to 89 fps
• Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/3 inch
• Pixel Size: H: 6 µm, V: 6 µm (binned from raw 3 µm × 3 µm)
• Lens Mount: M12 × 0.5 (optional)
• Interface: USB 2.0 (power via USB)
• Trigger & I/O Inputs: Supported
• Dimensions: 30 × 30 × 15 mm
