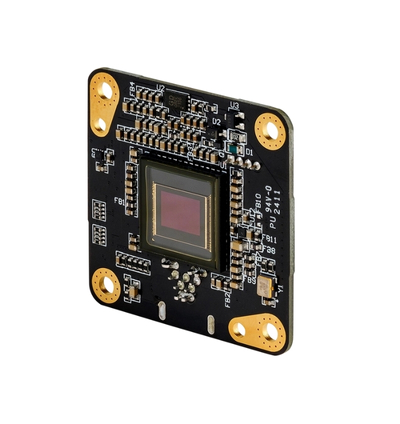

The Imaging Source DFM 32UVR024-MLA Camera

The DFM 32UVR024-MLA is a compact, high-speed color board camera designed for embedded and industrial imaging applications that demand precision, efficiency, and flexibility. Featuring an angled USB 2.0 connector for easy integration in tight enclosures, it utilizes the onsemi AR0234CS CMOS sensor to deliver vibrant, low-noise color images with a global shutter, eliminating motion artifacts even at high frame rates. With 0.4 MP resolution (binned from 3 µm pixels) and capture speeds of up to 89 fps, this camera provides exceptional performance in inspection, automation, and real-time monitoring systems—all within a space-saving 30 × 30 × 15 mm housing powered directly via USB.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 10 bit
• Resolution: 744 × 480 (0.4 MP)
• Frame Rate: Up to 89 fps
• Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/3 inch
• Pixel Size: H: 6 µm, V: 6 µm (binned from raw 3 µm × 3 µm)
• Lens Mount: M12 × 0.5 (optional)
