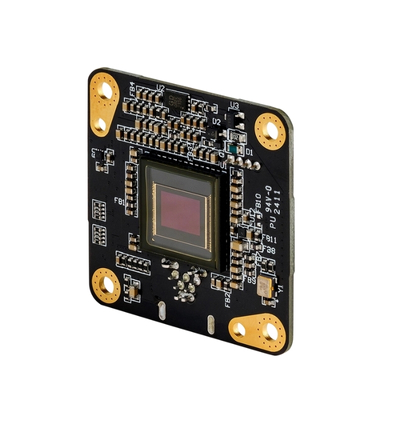

The Imaging Source DFM 32UVR024-MLPB Camera

The DFM 32UVR024-MLPB is a high-performance color board camera optimized for embedded and industrial imaging systems where space and reliability are critical. It features a USB 2.0 PicoBlade interface powered directly via USB and integrates the onsemi AR0234CS CMOS sensor to deliver sharp, color-accurate images with a global shutter, ensuring distortion-free performance at high speeds. With 0.4 MP resolution (binned from 3 µm pixels) and frame rates up to 89 fps, this compact 30 × 30 × 15 mm camera is ideal for automation, inspection, and high-speed monitoring applications that demand both precision and compact integration.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 10 bit
• Resolution: 744 × 480 (0.4 MP)
• Frame Rate: Up to 89 fps
• Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/3 inch
• Pixel Size: H: 6 µm, V: 6 µm (binned from raw 3 µm × 3 µm)
• Lens Mount: M12 × 0.5 (optional)
• Interface: USB 2.0 (PicoBlade, power via USB)
• Trigger & I/O Inputs: Supported

• Dimensions: 30 × 30 × 15 mm
