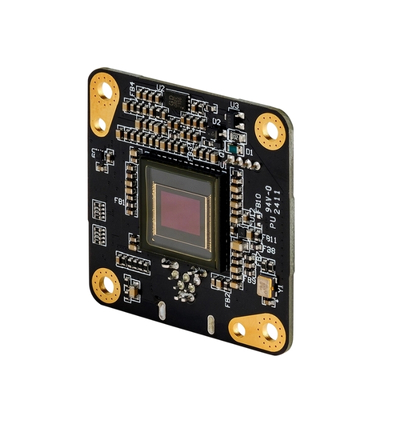

The Imaging Source DMM 32UR0234-MLA Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
The DMM 32UR0234-MLA is a compact monochrome board-level camera engineered for high-precision imaging in space-limited environments. Equipped with the onsemi AR0234CS CMOS sensor and a USB 2.0 interface with angled connector, it delivers sharp, distortion-free images using a global shutter—ideal for capturing motion in industrial automation and embedded vision systems. With its small 30 × 30 × 15 mm form factor, low power consumption, and USB-powered operation, this camera offers reliable performance and easy integration for OEMs and developers seeking quality imaging in a minimal footprint.
TECHNICAL INFORMATION:
- Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
- Dynamic Range: 10 bit
- Resolution: 1,920 × 1,200 (2.3 MP)
- Frame Rate: Up to 13 fps
- Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
- Sensor Type: CMOS
- Sensor Model: onsemi AR0234CS
- Shutter Type: Global
- Optical Format: 1/2.6 inch
- Pixel Size: H: 3 µm, V: 3 µm
- Lens Mount: M12 × 0.5 (optional)
- Interface: USB 2.0 (angled connector, power via USB)
- Trigger & I/O Inputs: Supported
- Dimensions: 30 × 30 × 15 mm
Quick Info for the The Imaging Source DMM 32UR0234-MLA
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 32U Series |
| FPS: | 13 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.3 MP |
| Scanning Mode: | Global Shutter |
