The Imaging Source DMM 32UR0234-MLPB Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

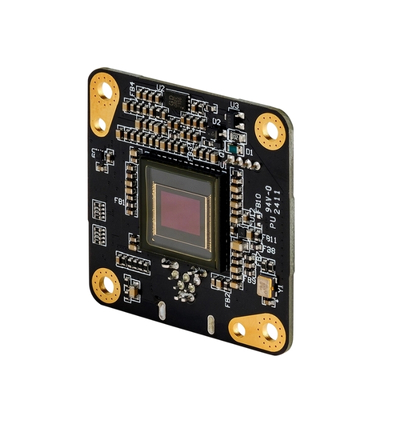

The DMM 32UR0234-MLPB is a precision-engineered monochrome board-level camera featuring a USB 2.0 PicoBlade interface with power supplied directly via USB. Built around the onsemi AR0234CS CMOS sensor, it provides crisp, low-noise images with a global shutter—ensuring distortion-free capture of fast-moving subjects. With a compact 30 × 30 × 15 mm design and reliable 2.3 MP performance, this camera is ideal for embedded vision, automation, and inspection systems where space efficiency and dependable image quality are essential.
TECHNICAL INFORMATION:
- Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
- Dynamic Range: 10 bit
- Resolution: 1,920 × 1,200 (2.3 MP)
- Frame Rate: Up to 13 fps
- Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
- Sensor Type: CMOS
- Sensor Model: onsemi AR0234CS
- Shutter Type: Global
- Optical Format: 1/2.6 inch
- Pixel Size: H: 3 µm, V: 3 µm
- Lens Mount: M12 × 0.5 (optional)
- Interface: USB 2.0 (PicoBlade, power via USB)
- Trigger & I/O Inputs: Supported
- Dimensions: 30 × 30 × 15 mm
Quick Info for the The Imaging Source DMM 32UR0234-MLPB
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 32U Series |
| FPS: | 13 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.3 MP |
| Scanning Mode: | Global Shutter |
