The Imaging Source DMM 32UR0521-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

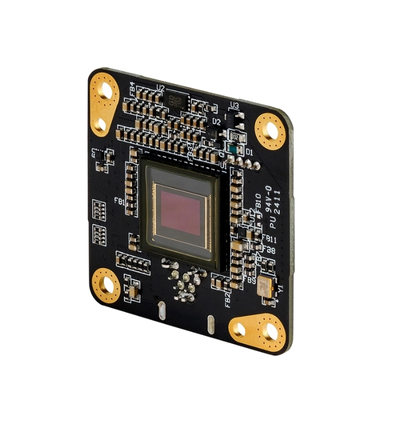

The DMM 32UR0521-ML is a high-resolution monochrome board camera built for precision imaging and embedded vision applications. Powered via USB 2.0, it integrates the onsemi AR0521 CMOS sensor, offering a detailed 5 MP resolution and smooth performance at up to 6 fps. Its rolling shutter design captures fine image detail, making it ideal for applications requiring high-quality stills or controlled motion imaging. Compact dimensions of just 30 × 30 × 15 mm enable easy integration into OEM systems, inspection tools, and embedded devices.
TECHNICAL INFORMATION:
- Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
- Dynamic Range: 12 bit
- Resolution: 2,592 × 1,944 (5 MP)
- Frame Rate: Up to 6 fps
- Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
- Sensor Type: CMOS
- Sensor Model: onsemi AR0521
- Shutter Type: Rolling
- Optical Format: 1/2.5 inch
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Lens Mount: M12 × 0.5 (optional)
- Interface: USB 2.0 (power via USB)
- Trigger & I/O Inputs: Supported
- Dimensions: 30 × 30 × 15 mm
Quick Info for the The Imaging Source DMM 32UR0521-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 32U Series |
| FPS: | 6 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
