The Imaging Source DMM 32UR0521-MLA Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

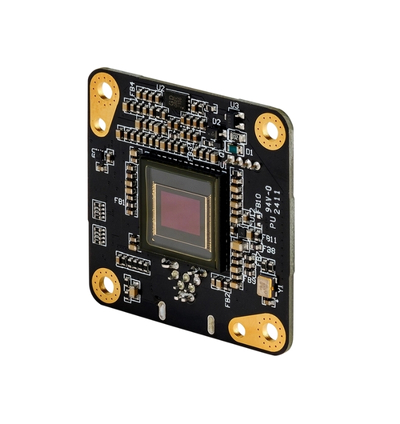

The DMM 32UR0521-MLA is a compact monochrome board-level camera engineered for precision imaging and easy integration in embedded vision systems. Featuring an angled USB 2.0 connector for flexible installation and powered directly via USB, this camera utilizes the onsemi AR0521 CMOS sensor to deliver sharp 5 MP resolution at up to 6 fps.
With its rolling shutter and small 30 × 30 × 15 mm footprint, it’s ideal for OEM devices, inspection tools, and industrial imaging applications that require dependable image quality in limited space.
TECHNICAL INFORMATION:
- Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
- Dynamic Range: 12 bit
- Resolution: 2,592 × 1,944 (5 MP)
- Frame Rate: Up to 6 fps
- Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
- Sensor Type: CMOS
- Sensor Model: onsemi AR0521
- Shutter Type: Rolling
- Optical Format: 1/2.5 inch
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Lens Mount: M12 × 0.5 (optional)
- Interface: USB 2.0 (angled connector, power via USB)
- Trigger & I/O Inputs: Supported
- Dimensions: 30 × 30 × 15 mm
Quick Info for the The Imaging Source DMM 32UR0521-MLA
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 32U Series |
| FPS: | 6 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
