The Imaging Source DMM 32UR0521-MLPB Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

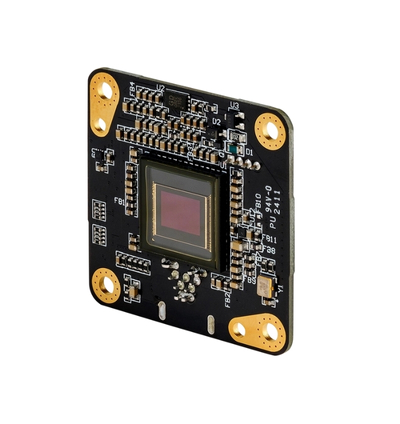

The DMM 32UR0521-MLPB is a compact monochrome board-level camera designed for precision imaging in embedded and industrial applications. Equipped with a USB 2.0 PicoBlade interface and powered directly via USB, it features the onsemi AR0521 CMOS sensor for clear, high-resolution 5 MP imaging at up to 6 fps. With its rolling shutter and small 30 × 30 × 15 mm footprint, this camera offers exceptional image detail, flexible integration options, and reliable performance for OEM systems and machine vision environments.
TECHNICAL INFORMATION:
- Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
- Dynamic Range: 12 bit
- Resolution: 2,592 × 1,944 (5 MP)
- Frame Rate: Up to 6 fps
- Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
- Sensor Type: CMOS
- Sensor Model: onsemi AR0521
- Shutter Type: Rolling
- Optical Format: 1/2.5 inch
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Lens Mount: M12 × 0.5 (optional)
- Interface: USB 2.0 (PicoBlade, power via USB)
- Trigger & I/O Inputs: Supported
- Dimensions: 30 × 30 × 15 mm
Quick Info for the The Imaging Source DMM 32UR0521-MLPB
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 32U Series |
| FPS: | 6 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
