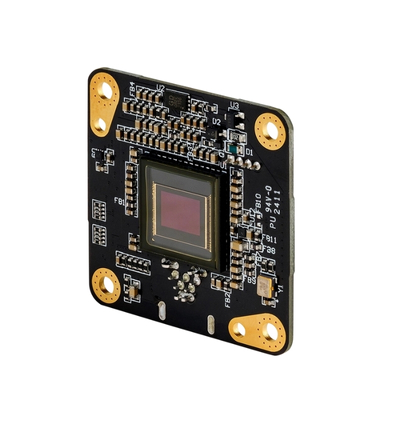

The Imaging Source DMM 32UVR024-ML Camera

This 32U Series monochrome board camera pairs a USB 2.0 interface with the onsemi AR0234CS global-shutter CMOS sensor to deliver 0.4 MP at up to 89 fps. Effective 6 µm pixels (binned from 3 µm) support high sensitivity and low noise, while trigger and I/O inputs simplify precise system synchronization. Power via USB and a compact 30×30×15 mm footprint make it a practical choice for cost-sensitive embedded and machine vision designs using an optional M12 lens mount.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 10 bit
• Resolution: 744×480 (0.4 MP)
• Frame Rate: 89 fps
• Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR0234CS
• Shutter: Global
• Format: 1/3 inch
• Pixel Size: H: 6 µm, V: 6 µm (binned from raw 3 µm x 3 µm)
• Lens Mount: M12x0.5, optional
