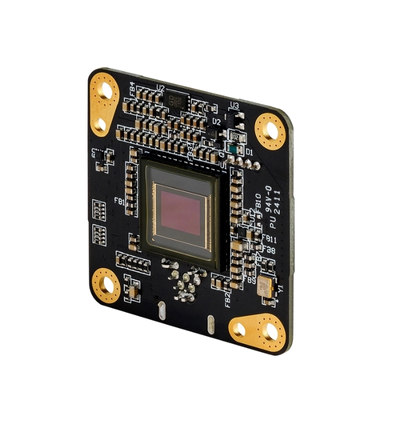

The Imaging Source DMM 32UVR024-MLA Camera

Built for tight spaces, this 32U Series monochrome board camera adds an angled USB 2.0 connector to the AR0234CS global-shutter platform. It captures 0.4 MP at up to 89 fps with effective 6 µm pixels for strong low-light performance. Trigger and I/O inputs support deterministic timing, and the 30×30×15 mm, USB-powered design with optional M12 lens mount streamlines embedded integration where connector orientation matters.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 10 bit
• Resolution: 744×480 (0.4 MP)
• Frame Rate: 89 fps
• Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR0234CS
• Shutter: Global
• Format: 1/3 inch
• Pixel Size: H: 6 µm, V: 6 µm (binned from raw 3 µm x 3 µm)
• Lens Mount: M12x0.5, optional
