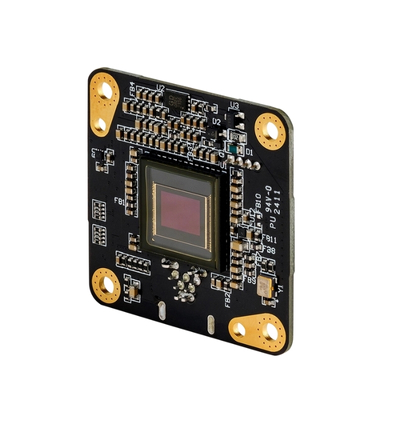

The Imaging Source DMM 32UVR024-MLPB Camera

This 32U Series monochrome board camera features a PicoBlade USB 2.0 connection for secure harnessing in embedded builds. Using the onsemi AR0234CS global-shutter sensor, it delivers 0.4 MP at up to 89 fps with effective 6 µm pixels for enhanced sensitivity. Trigger and I/O inputs enable precise synchronization, and the USB-powered 30×30×15 mm form factor with optional M12 lens mount makes integration straightforward in space- and wiring-constrained designs.

TECHNICAL INFORMATION:

• Vision Standard: Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
• Dynamic Range: 10 bit
• Resolution: 744×480 (0.4 MP)
• Frame Rate: 89 fps
• Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR0234CS
• Shutter: Global
• Format: 1/3 inch
• Pixel Size: H: 6 µm, V: 6 µm (binned from raw 3 µm x 3 µm)
• Lens Mount: M12x0.5, optional
