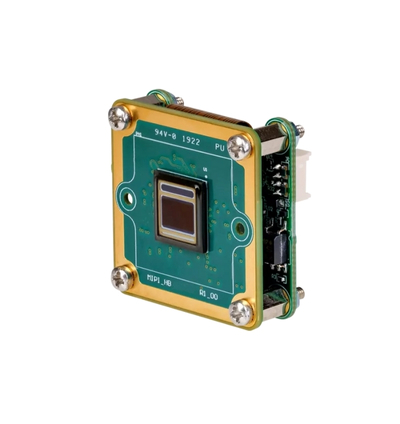

The Imaging Source DFM 36AR0234-ML Camera

The DFM 36AR0234-ML is a high-speed 36A Series Color MIPI CSI-2 camera designed for embedded vision and industrial imaging applications that demand precision, reliability, and color accuracy. Equipped with the 1/2.6-inch onsemi CMOS AR0234CS global shutter sensor, it captures 1920×1200 (2.3 MP) resolution at up to 60 fps, producing sharp, distortion-free color images ideal for high-motion environments. Its 15-pin Raspberry Pi–compatible connector ensures seamless integration with Raspberry Pi 5 and other MIPI CSI-2 platforms, while 10-bit Bayer (GR) output provides smooth color gradients and excellent tonal precision. With trigger and I/O inputs, an M12 lens mount option, and a compact 30×30×16.2 mm design, the DFM 36AR0234-ML offers exceptional imaging performance and flexibility for machine vision, robotics, and embedded AI systems.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 60 fps
• Video Output Format: 10-Bit Bayer (GR)
• Interface: MIPI CSI-2 (15-Pin Raspberry Pi-Compatible Connector)
• Compatibility: Raspberry Pi 5 and other MIPI CSI-2 platforms
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Lens Mount: M12x0.5, optional
• Trigger and I/O Inputs: Supported
• Dimensions: 30×30×16.2 mm
