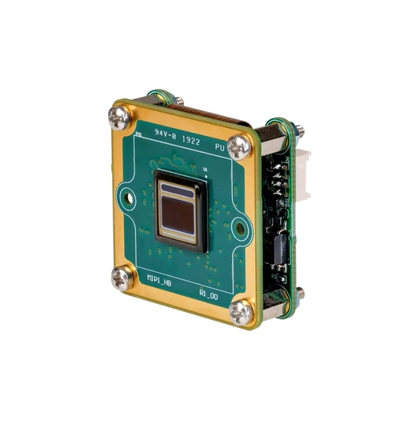

The Imaging Source DFM 36AX296-ML Camera
The DFM 36AX296-ML is a high-performance 36A Series Color MIPI CSI-2 camera built for embedded vision, robotics, and industrial imaging applications requiring precision and speed. Equipped with the 1/2.9-inch Sony CMOS Pregius IMX296 global shutter sensor, it captures 1440×1080 (1.6 MP) resolution at up to 60 fps, delivering crisp, motion-free color images ideal for fast-moving scenes. Its 15-pin Raspberry Pi–compatible connector ensures seamless integration with Raspberry Pi 5 and other MIPI CSI-2 platforms, while 10-bit Bayer (RG) output provides superior color accuracy and tonal consistency. With trigger and I/O inputs, an M12 lens mount option, and a compact 30×30×16.2 mm design, the DFM 36AX296-ML delivers powerful imaging performance for machine vision, automation, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 1,440×1,080 (1.6 MP)
- Frame Rate: 60 fps
- Video Output Format: 10-Bit Bayer (RG)
- Interface: MIPI CSI-2 (15-Pin Raspberry Pi-Compatible Connector)
- Compatibility: Raspberry Pi 5 and other MIPI CSI-2 platforms
- Sensor Type: CMOS Pregius
- Sensor Model: Sony IMX296
- Shutter Type: Global
- Optical Format: 1/2.9 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Lens Mount: M12x0.5, optional
- Trigger and I/O Inputs: Supported
- Dimensions: 30×30×16.2 mm
Quick Info for the The Imaging Source DFM 36AX296-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36A Series |
| FPS: | 60 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 1.6 MP |
| Scanning Mode: | Global Shutter |
