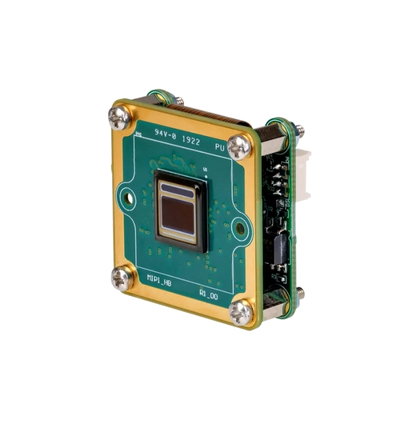

The Imaging Source DFM 36AX390-ML Camera
The DFM 36AX390-ML is a compact 36A Series Color MIPI CSI-2 camera designed for embedded vision and imaging applications that require high dynamic range and exceptional color performance. Featuring the 1/2.6-inch Sony CMOS IMX390 rolling shutter sensor, it captures 1920×1200 (2.3 MP) resolution at up to 25 fps, delivering clear, vibrant images with a 12-bit dynamic range and PWL HDR (piecewise linear high dynamic range) capability for enhanced imaging in variable lighting conditions. Its 15-pin Raspberry Pi–compatible connector ensures seamless integration with Raspberry Pi 5 and other MIPI CSI-2 platforms, while 12-bit Bayer (RG) output provides superior tonal depth and color accuracy. With an M12 lens mount option and compact 30×30×16.2 mm design, the DFM 36AX390-ML offers robust imaging performance for smart vision, automation, and embedded AI systems operating in challenging light environments.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 1,920×1,200 (2.3 MP)
- Frame Rate: 25 fps
- Video Output Format: 12-Bit Bayer (RG), PWL HDR
- Interface: MIPI CSI-2 (15-Pin Raspberry Pi-Compatible Connector)
- Compatibility: Raspberry Pi 5 and other MIPI CSI-2 platforms
- Sensor Type: CMOS
- Sensor Model: Sony IMX390
- Shutter Type: Rolling
- Optical Format: 1/2.6 inch
- Pixel Size: H: 3 µm, V: 3 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×16.2 mm
Quick Info for the The Imaging Source DFM 36AX390-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36A Series |
| FPS: | 25 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.3 MP |
| Scanning Mode: | Rolling Shutter |
