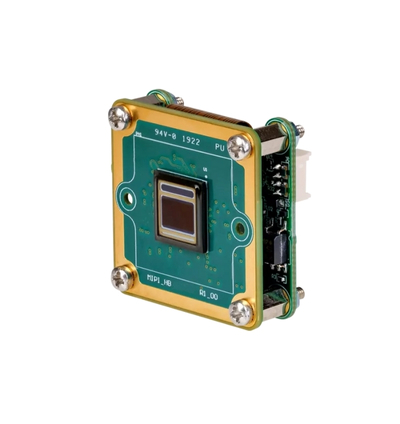

The Imaging Source DFM 36AX462-ML Camera
The DFM 36AX462-ML is a compact 36A Series Color MIPI CSI-2 camera optimized for embedded vision, automation, and AI imaging applications that require superior low-light performance. Built around the 1/2.8-inch Sony CMOS STARVIS IMX462 rolling shutter sensor, it captures 1920×1080 (2.1 MP) resolution at up to 60 fps, delivering exceptional image quality, enhanced sensitivity, and low noise with a 12-bit dynamic range. Its 15-pin Raspberry Pi–compatible connector ensures easy integration with Raspberry Pi 5 and other MIPI CSI-2 platforms, while 12-bit Bayer (RG) output provides accurate color fidelity and smooth tonal transitions. With an M12 lens mount option and a compact 30×30×16.2 mm design, the DFM 36AX462-ML combines versatility, precision, and efficiency—ideal for machine vision, robotics, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 1,920×1,080 (2.1 MP)
- Frame Rate: 60 fps
- Video Output Format: 12-Bit Bayer (RG)
- Interface: MIPI CSI-2 (15-Pin Raspberry Pi-Compatible Connector)
- Compatibility: Raspberry Pi 5 and other MIPI CSI-2 platforms
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX462
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 2.9 µm, V: 2.9 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×16.2 mm
Quick Info for the The Imaging Source DFM 36AX462-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36A Series |
| FPS: | 60 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.1 MP |
| Scanning Mode: | Rolling Shutter |
