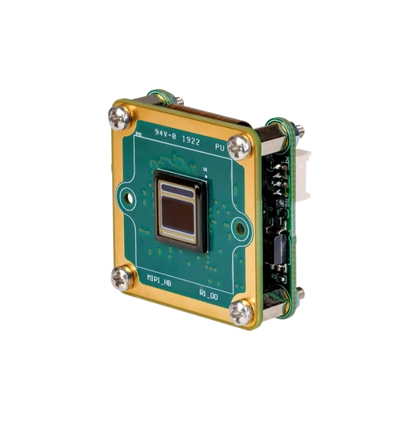

The Imaging Source DMM 36AR0234-ML Camera

The DMM 36AR0234-ML is a compact 36A Series Monochrome MIPI CSI-2 camera optimized for embedded vision and industrial imaging systems. Equipped with the 1/2.6-inch onsemi CMOS AR0234CS global shutter sensor, it delivers 1920×1200 (2.3 MP) resolution at up to 60 fps, providing distortion-free, high-contrast images even in fast-motion environments. Its 15-pin Raspberry Pi–compatible connector ensures straightforward integration with Raspberry Pi 5 and other MIPI-compatible platforms. Offering 10-bit monochrome output, trigger and I/O inputs, and a durable 30×30×16.2 mm housing, the DMM 36AR0234-ML provides precision imaging performance in a small, flexible form factor—ideal for machine vision, robotics, and embedded AI applications.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 60 fps
• Video Output Format: 10-Bit Monochrome
• Interface: MIPI CSI-2 (15-Pin Raspberry Pi-Compatible Connector)
• Compatibility: Raspberry Pi 5 and other MIPI CSI-2 platforms
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Lens Mount: M12x0.5, optional
• Trigger and I/O Inputs: Supported
• Dimensions: 30×30×16.2 mm
