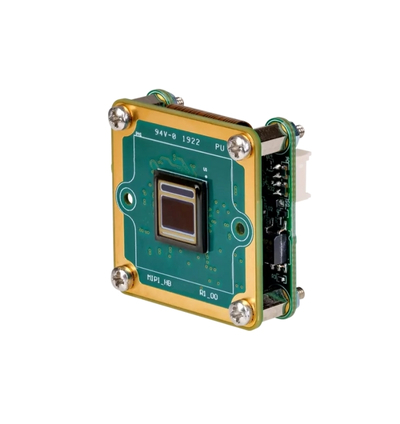

The Imaging Source DMM 36AX290-ML Camera

This 36A Series monochrome MIPI CSI-2 camera uses a 15-pin Raspberry Pi compatible connector for a direct sensor-to-processor link. The Sony IMX290 STARVIS rolling-shutter sensor captures 2.1 MP at up to 60 fps, and 2.9 µm pixels support detailed imaging in compact embedded designs. The slim 30×30×16.2 mm module integrates cleanly and the optional M12 lens mount provides flexible optics selection.

TECHNICAL INFORMATION:

• Dynamic Range: 12 bit
• Resolution: 1,920×1,080 (2.1 MP)
• Frame Rate: 60 fps
• Video Output Format: 12-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS STARVIS
• Sensor Specification: Sony IMX290
• Shutter: Rolling
• Format: 1/2.8 inch
• Pixel Size: H: 2.9 µm, V: 2.9 µm
• Lens Mount: M12x0.5, optional
