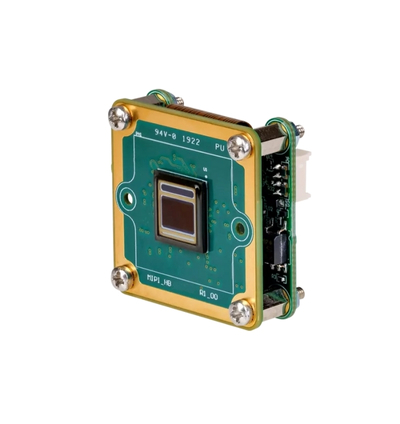

The Imaging Source DMM 36AX296-ML Camera

This 36A Series monochrome MIPI CSI-2 camera features a 15-pin Raspberry Pi-compatible connector for a direct sensor-to-processor link. The Sony IMX296 Pregius global-shutter sensor captures 1.6 MP at up to 60 fps, and its 3.45 µm pixels deliver sharp, low-noise images of fast-moving scenes. Trigger and I/O inputs enable deterministic capture, while the compact 30×30×16.2 mm design and optional M12 lens mount make integration straightforward for embedded vision projects.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,440×1,080 (1.6 MP)
• Frame Rate: 60 fps
• Video Output Format: 10-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS Pregius
• Sensor Specification: Sony IMX296
• Shutter: Global
• Format: 1/2.9 inch
• Pixel Size: H: 3.45 µm, V: 3.45 µm
• Lens Mount: M12x0.5, optional
