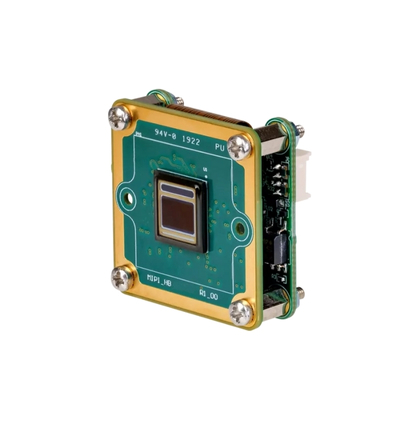

This 36A Series monochrome MIPI CSI-2 camera features a 15-pin Raspberry Pi-compatible connector for a direct sensor-to-processor link. The Sony IMX297 Pregius global-shutter sensor captures 0.4 MP at up to 120 fps, and its large 6.9 µm pixels deliver high sensitivity for clean imaging in challenging light. Trigger and I/O inputs enable deterministic capture, while the compact 30×30×16.2 mm design and optional M12 lens mount simplify embedded system integration.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 720×540 (0.4 MP)
- Frame Rate: 120 fps
- Video Output Format: 10-Bit Monochrome
- Interface (Optical)
- Sensor Type: CMOS Pregius
- Sensor Specification: Sony IMX297
- Shutter: Global
- Format: 1/2.9 inch
- Pixel Size: H: 6.9 µm, V: 6.9 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DMM 36AX297-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36A Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | Under 1 MP |
| Scanning Mode: | Global Shutter |
