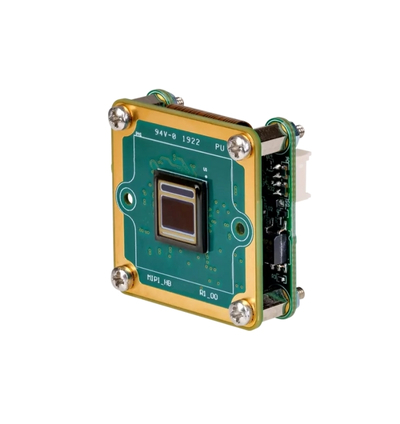

The Imaging Source DMM 36AX335-ML Camera
The DMM 36AX335-ML is a compact, high-quality 36A Series Monochrome MIPI CSI-2 camera engineered for embedded vision and AI imaging applications. Featuring the 1/2.8-inch Sony CMOS STARVIS IMX335 rolling shutter sensor, it captures 2592×1944 (5 MP) resolution at up to 30 fps, delivering sharp, low-noise images with excellent sensitivity and a 12-bit dynamic range. Its 15-pin Raspberry Pi–compatible connector enables effortless integration with Raspberry Pi 5 and other MIPI CSI-2 platforms, while 10-bit monochrome output ensures detailed grayscale imaging for analysis and inspection tasks. With an M12 lens mount option and a compact 30×30×16.2 mm form factor, the DMM 36AX335-ML provides reliable performance and versatility for machine vision, automation, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 2,592×1,944 (5 MP)
- Frame Rate: 30 fps
- Video Output Format: 10-Bit Monochrome
- Interface: MIPI CSI-2 (15-Pin Raspberry Pi-Compatible Connector)
- Compatibility: Raspberry Pi 5 and other MIPI CSI-2 platforms
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX335
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 2 µm, V: 2 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×16.2 mm
Quick Info for the The Imaging Source DMM 36AX335-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36A Series |
| FPS: | 30 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
