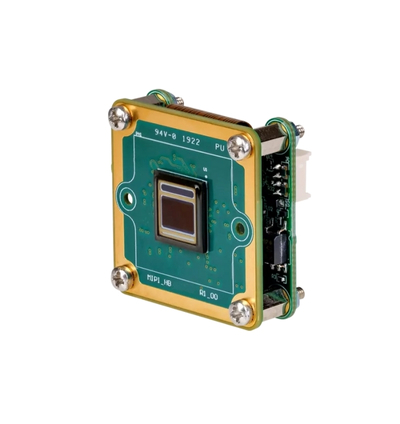

The Imaging Source DMM 36AX415-ML Camera
The DMM 36AX415-ML is a high-resolution 36A Series Monochrome MIPI CSI-2 camera designed for embedded vision and industrial imaging systems requiring exceptional image clarity and precision. Powered by the 1/2.8-inch Sony CMOS STARVIS IMX415 rolling shutter sensor, it captures 3840×2160 (8.3 MP) resolution at up to 50 fps, producing detailed, low-noise monochrome images with an impressive 12-bit dynamic range. Its 15-pin Raspberry Pi–compatible connector ensures easy integration with Raspberry Pi 5 and other MIPI CSI-2 platforms, while 10-bit and 12-bit monochrome output provide excellent tonal depth for imaging and analysis applications. With an M12 lens mount option and compact 30×30×16.2 mm design, the DMM 36AX415-ML offers outstanding performance and versatility for machine vision, automation, and embedded AI applications.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 3,840×2,160 (8.3 MP)
- Frame Rate: 50 fps
- Video Output Format: 12-Bit Monochrome, 10-Bit Monochrome
- Interface: MIPI CSI-2 (15-Pin Raspberry Pi-Compatible Connector)
- Compatibility: Raspberry Pi 5 and other MIPI CSI-2 platforms
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX415
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 1.45 µm, V: 1.45 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×16.2 mm
Quick Info for the The Imaging Source DMM 36AX415-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36A Series |
| FPS: | 50 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 8.3 MP |
| Scanning Mode: | Rolling Shutter |
