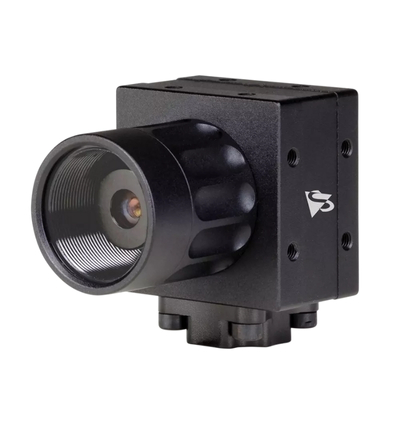

The Imaging Source DFK 36CR0234-I67 Camera

The DFK 36CR0234-I67 is a rugged 36C Series Color FPD-Link III camera designed for industrial, embedded vision, and robotics applications in demanding environments. Featuring the 1/2.6-inch onsemi CMOS AR0234CS global shutter sensor, it captures 1920×1200 (2.3 MP) resolution at up to 100 fps, delivering fast, precise color images with a 10-bit dynamic range. Certified IP6K6 and IP6K7 (ISO 20653), it offers full protection against dust, high-pressure water jets, and immersion up to 1 meter. Equipped with a trigger input and FPD-Link III interface, housed in a robust 36×36×60.3 mm package, the DFK 36CR0234-I67 provides reliable, high-performance imaging for automation, machine vision, and embedded AI systems.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 100 fps
• Video Output Format: 10-Bit Bayer (GR)
• Interface: FPD-Link III
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
• Trigger Input: Supported
• Dimensions: 36×36×60.3 mm
