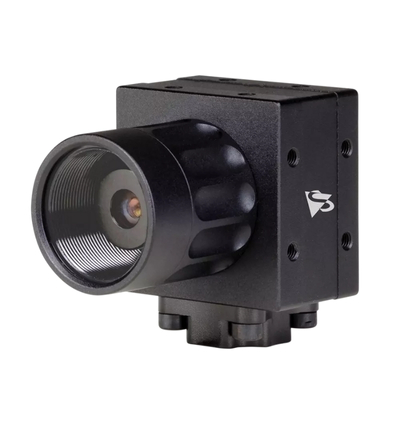

The Imaging Source DFK 36CX296-I67 Camera

The DFK 36CX296-I67 is a rugged 36C Series Color FPD-Link III camera engineered for industrial, embedded vision, and robotics applications operating in harsh environments. Featuring the 1/2.9-inch Sony CMOS Pregius IMX296 global shutter sensor, it delivers 1440×1080 (1.6 MP) resolution at up to 60 fps, producing sharp, accurate color images with a 10-bit dynamic range. Certified IP6K6 and IP6K7 (ISO 20653), it provides maximum protection against dust, powerful water jets, and immersion up to 1 meter, making it ideal for challenging indoor and outdoor conditions. With a trigger input, FPD-Link III interface, and robust 36×36×60.3 mm housing, the DFK 36CX296-I67 ensures reliable, high-performance imaging for machine vision, automation, and embedded AI systems.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,440×1,080 (1.6 MP)
• Frame Rate: 60 fps
• Video Output Format: 10-Bit Bayer (RG)
• Interface: FPD-Link III
• Sensor Type: CMOS Pregius
• Sensor Model: Sony IMX296
• Shutter Type: Global
• Optical Format: 1/2.9 inch
• Pixel Size: H: 3.45 µm, V: 3.45 µm
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
• Trigger Input: Supported
• Dimensions: 36×36×60.3 mm
