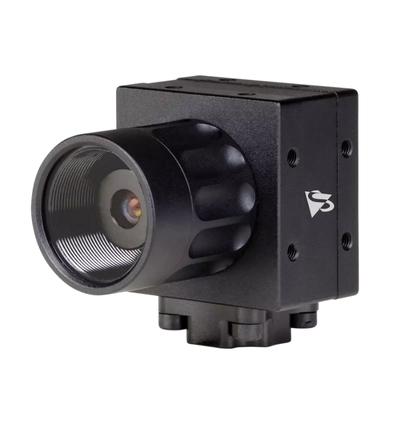

The Imaging Source DFK 36CX297-I67 Camera
The DFK 36CX297-I67 is a rugged 36C Series Color FPD-Link III camera built for industrial, embedded vision, and robotics applications in harsh environments. Featuring the 1/2.9-inch Sony CMOS Pregius IMX297 global shutter sensor, it captures 720×540 (0.4 MP) resolution at up to 120 fps, delivering fast, accurate color images with a 10-bit dynamic range. Certified IP6K6 and IP6K7 (ISO 20653), it provides maximum protection against dust, high-pressure water jets, and immersion up to 1 meter, making it suitable for demanding indoor and outdoor conditions. With a trigger input, FPD-Link III interface, and robust 36×36×60.3 mm housing, the DFK 36CX297-I67 ensures reliable high-speed imaging for automation, machine vision, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 720×540 (0.4 MP)
- Frame Rate: 120 fps
- Video Output Format: 10-Bit Bayer (RG)
- Interface: FPD-Link III
- Sensor Type: CMOS Pregius
- Sensor Model: Sony IMX297
- Shutter Type: Global
- Optical Format: 1/2.9 inch
- Pixel Size: H: 6.9 µm, V: 6.9 µm
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
- Trigger Input: Supported
- Dimensions: 36×36×60.3 mm
Quick Info for the The Imaging Source DFK 36CX297-I67
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C IP67 Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | Under 1 MP |
| Scanning Mode: | Global Shutter |
