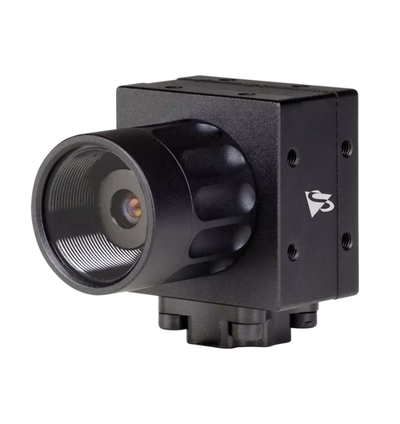

The Imaging Source DFK 36CX335-I67 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
The DFK 36CX335-I67 is a rugged 36C Series Color FPD-Link III camera designed for industrial, embedded vision, and robotics applications in harsh environments. Featuring the 1/2.8-inch Sony CMOS STARVIS IMX335 rolling shutter sensor, it captures 2592×1944 (5 MP) resolution at up to 30 fps, producing detailed, low-noise color images with a 12-bit dynamic range. Certified IP6K6 and IP6K7 (ISO 20653), it offers full protection against dust, high-pressure water jets, and immersion up to 1 meter. With a FPD-Link III interface and robust 36×36×60.3 mm housing, the DFK 36CX335-I67 provides reliable, high-performance imaging for machine vision, automation, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 2,592×1,944 (5 MP)
- Frame Rate: 30 fps
- Video Output Format: 12-Bit Bayer (RG), 10-Bit Bayer (RG)
- Interface: FPD-Link III
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX335
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 2 µm, V: 2 µm
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
- Dimensions: 36×36×60.3 mm
Quick Info for the The Imaging Source DFK 36CX335-I67
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C IP67 Series |
| FPS: | 30 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
