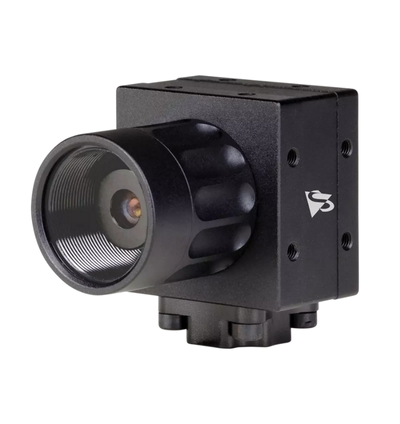

The Imaging Source DFK 36CX390-I67 Camera

The DFK 36CX390-I67 is a rugged 36C Series Color FPD-Link III camera designed for industrial, robotics, and embedded vision applications in challenging environments. Featuring the 1/2.6-inch Sony CMOS IMX390 rolling shutter sensor, it captures 1920×1200 (2.3 MP) resolution at up to 50 fps, delivering crisp, low-noise color images with a 12-bit dynamic range and PWL HDR for superior performance in variable lighting conditions. Certified IP6K6 and IP6K7 (ISO 20653), it provides protection against dust, high-pressure water jets, and immersion up to 1 meter. With a FPD-Link III interface and compact 36×36×60.3 mm housing, the DFK 36CX390-I67 ensures reliable, high-performance imaging for automation, machine vision, and embedded AI systems.

TECHNICAL INFORMATION:

• Dynamic Range: 12 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 50 fps
• Video Output Format: 12-Bit Bayer (RG), PWL HDR
• Interface: FPD-Link III
• Sensor Type: CMOS
• Sensor Model: Sony IMX390
• Shutter Type: Rolling
• Optical Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
• Dimensions: 36×36×60.3 mm
