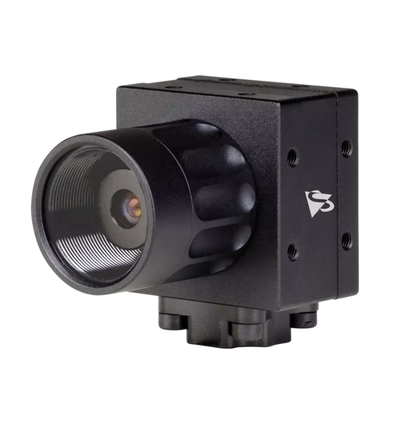

The Imaging Source DMK 36CR0234-I67 Camera

The DMK 36CR0234-I67 is a rugged 36C Series Monochrome FPD-Link III camera built for harsh industrial environments and embedded vision applications. Featuring the 1/2.6-inch onsemi CMOS AR0234CS global shutter sensor, it captures 1920×1200 (2.3 MP) resolution at up to 100 fps, delivering fast, precise monochrome images with a 10-bit dynamic range. This camera is IP6K6 and IP6K7 compliant (ISO 20653), providing maximum protection against dust, powerful water jets, and immersion up to 1 meter, making it ideal for challenging indoor and outdoor conditions. With a trigger input, FPD-Link III interface, and robust 36×36×60.3 mm housing, the DMK 36CR0234-I67 ensures reliable, high-performance imaging for automation, robotics, and industrial machine vision systems.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 100 fps
• Video Output Format: 10-Bit Monochrome
• Interface: FPD-Link III
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Trigger Input: Supported
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
• Dimensions: 36×36×60.3 mm
