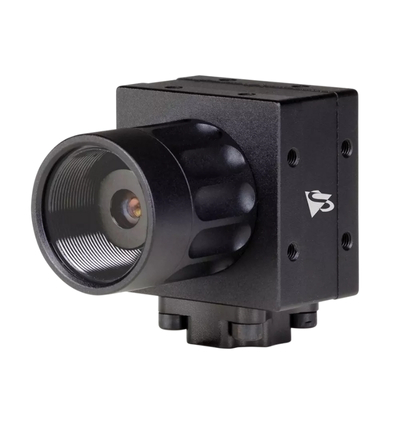

The Imaging Source DMK 36CX290-I67 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
This 36C Series monochrome FPD-Link III camera integrates the Sony IMX290 STARVIS rolling-shutter sensor to capture 2.1 MP at up to 60 fps. Its 2.9 µm pixels provide detailed imaging for embedded and industrial applications, while FPD-Link III connectivity enables a reliable sensor-to-processor link over extended distances. Built for harsh environments, it is IP6K6 and IP6K7 compliant to ISO 20653 for protection against dust, powerful water jets, and immersion up to 1 m. The compact 36×36×60.3 mm form factor fits space-constrained systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 1,920×1,080 (2.1 MP)
- Frame Rate: 60 fps
- Video Output Format: 12-Bit Monochrome
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
Quick Info for the The Imaging Source DMK 36CX290-I67
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C IP67 Series |
| FPS: | 60 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.1 MP |
| Scanning Mode: | - |
