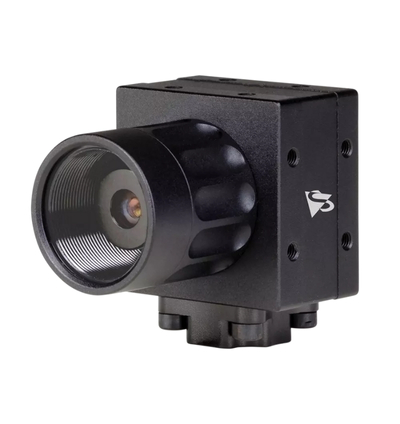

The Imaging Source DMK 36CX296-I67 Camera

This 36C Series monochrome FPD-Link III camera integrates the Sony IMX296 Pregius global-shutter sensor to capture 1.6 MP at up to 60 fps with sharp results on moving targets. Its 3.45 µm pixels support clean, low-noise imaging, and a trigger input enables precise system timing. Designed for harsh environments, the camera is IP6K6 and IP6K7 compliant to ISO 20653 for protection against dust, powerful water jets, and immersion. The compact 36×36×60.3 mm form factor integrates cleanly into rugged embedded and industrial vision systems using FPD-Link III connectivity.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,440×1,080 (1.6 MP)
• Frame Rate: 60 fps
• Video Output Format: 10-Bit Monochrome
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
