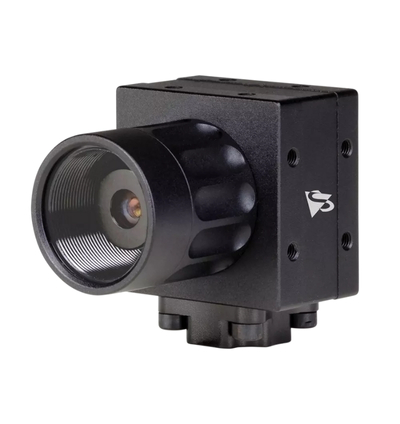

The Imaging Source DMK 36CX297-I67 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
This 36C Series monochrome FPD-Link III camera pairs the Sony IMX297 Pregius global-shutter sensor with rugged IP6K6 and IP6K7 protection to deliver reliable imaging in harsh environments. It captures 0.4 MP at up to 120 fps with large 6.9 µm pixels for high sensitivity, and a trigger input supports precise system timing. The compact 36×36×60.3 mm design integrates cleanly into embedded and industrial applications that require FPD-Link III connectivity and environmental resilience.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 720×540 (0.4 MP)
- Frame Rate: 120 fps
- Video Output Format: 10-Bit Monochrome
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
Quick Info for the The Imaging Source DMK 36CX297-I67
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C IP67 Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | Under 1 MP |
| Scanning Mode: | - |
