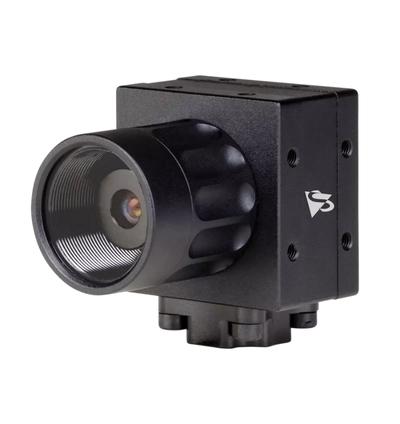

The Imaging Source DMK 36CX335-I67 Camera

The DMK 36CX335-I67 is a rugged 36C Series Monochrome FPD-Link III camera designed for industrial and embedded vision applications in harsh environments. Equipped with the 1/2.8-inch Sony CMOS STARVIS IMX335 rolling shutter sensor, it captures 2592×1944 (5 MP) resolution at up to 30 fps, delivering detailed, low-noise monochrome images with a 12-bit dynamic range. Certified IP6K6 and IP6K7 (ISO 20653), it provides maximum protection against dust, powerful water jets, and immersion up to 1 meter, making it ideal for demanding indoor and outdoor applications. With a FPD-Link III interface and durable 36×36×60.3 mm housing, the DMK 36CX335-I67 ensures reliable high-performance imaging for automation, robotics, and machine vision systems.

TECHNICAL INFORMATION:

• Dynamic Range: 12 bit
• Resolution: 2,592×1,944 (5 MP)
• Frame Rate: 30 fps
• Video Output Format: 12-Bit Monochrome, 10-Bit Monochrome
• Interface: FPD-Link III
• Sensor Type: CMOS STARVIS
• Sensor Model: Sony IMX335
• Shutter Type: Rolling
• Optical Format: 1/2.8 inch
• Pixel Size: H: 2 µm, V: 2 µm
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
• Dimensions: 36×36×60.3 mm
