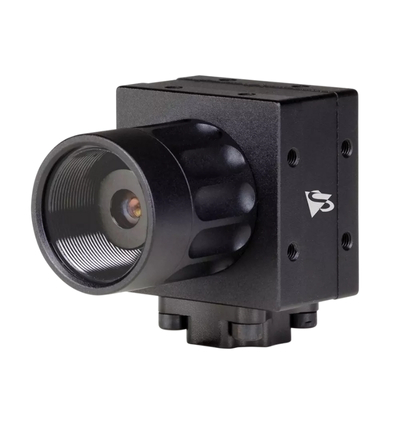

The Imaging Source DMK 36CX415-I67 Camera

The DMK 36CX415-I67 is a rugged 36C Series Monochrome FPD-Link III camera engineered for industrial and embedded vision applications in challenging environments. Featuring the 1/2.8-inch Sony CMOS STARVIS IMX415 rolling shutter sensor, it delivers 3840×2160 (8.3 MP) resolution at up to 30 fps, producing high-detail, low-noise monochrome images with a 12-bit dynamic range. Certified IP6K6 and IP6K7 (ISO 20653), it offers maximum protection against dust, powerful water jets, and immersion up to 1 meter, making it ideal for demanding indoor and outdoor operations. With a FPD-Link III interface and a durable 36×36×60.3 mm housing, the DMK 36CX415-I67 provides reliable, high-performance imaging for automation, robotics, and machine vision systems.

TECHNICAL INFORMATION:

• Dynamic Range: 12 bit
• Resolution: 3,840×2,160 (8.3 MP)
• Frame Rate: 30 fps
• Video Output Format: 12-Bit Monochrome, 10-Bit Monochrome
• Interface: FPD-Link III
• Sensor Type: CMOS STARVIS
• Sensor Model: Sony IMX415
• Shutter Type: Rolling
• Optical Format: 1/2.8 inch
• Pixel Size: H: 1.45 µm, V: 1.45 µm
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
• Dimensions: 36×36×60.3 mm
