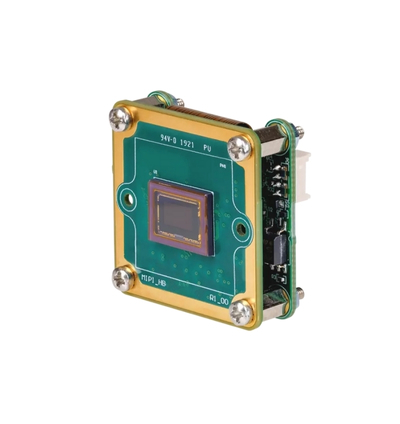

The Imaging Source DFM 36CR0234-ML Camera
The DFM 36CR0234-ML is a high-speed 36C Series Color FPD-Link III camera designed for industrial imaging, embedded vision, and robotics applications that require precise, high-quality color capture. Featuring the 1/2.6-inch onsemi CMOS AR0234CS global shutter sensor, it delivers 1920×1200 (2.3 MP) resolution at up to 100 fps, providing fast, accurate color images with a 10-bit dynamic range. Its FPD-Link III interface ensures reliable high-speed data transfer, while trigger and I/O inputs enable flexible synchronization for multi-camera setups. With 10-bit Bayer (GR) output, an M12 lens mount option, and a compact 30×30×27.5 mm design, the DFM 36CR0234-ML offers outstanding performance for automation, machine vision, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 1,920×1,200 (2.3 MP)
- Frame Rate: 100 fps
- Video Output Format: 10-Bit Bayer (GR)
- Interface: FPD-Link III
- Compatibility: FPD-Link III interfaces
- Sensor Type: CMOS
- Sensor Model: onsemi AR0234CS
- Shutter Type: Global
- Optical Format: 1/2.6 inch
- Pixel Size: H: 3 µm, V: 3 µm
- Lens Mount: M12x0.5, optional
- Trigger and I/O Inputs: Supported
- Dimensions: 30×30×27.5 mm
Quick Info for the The Imaging Source DFM 36CR0234-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C Series |
| FPS: | 100 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.3 MP |
| Scanning Mode: | Global Shutter |
