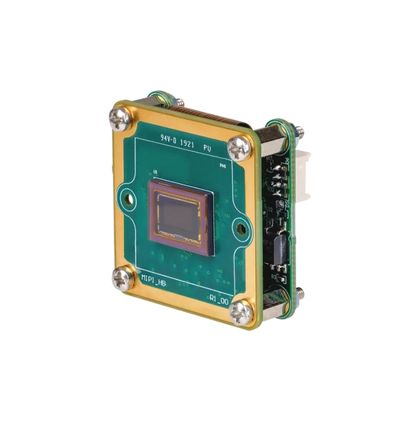

The Imaging Source DFM 36CX290-ML Camera
The DFM 36CX290-ML is a compact, high-sensitivity 36C Series Color FPD-Link III camera designed for embedded vision, robotics, and industrial imaging applications that require detailed, low-noise color capture. Featuring the 1/2.8-inch Sony CMOS STARVIS IMX290 rolling shutter sensor, it captures 1920×1080 (2.1 MP) resolution at up to 60 fps, delivering clear, vibrant images with a 12-bit dynamic range. Its FPD-Link III interface ensures high-speed, reliable data transfer, and the 12-bit Bayer (RG) output provides excellent color fidelity and tonal depth. With an M12 lens mount option and a compact 30×30×27.5 mm design, the DFM 36CX290-ML offers versatile, high-performance imaging for machine vision, automation, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 1,920×1,080 (2.1 MP)
- Frame Rate: 60 fps
- Video Output Format: 12-Bit Bayer (RG)
- Interface: FPD-Link III
- Compatibility: FPD-Link III interfaces
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX290
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 2.9 µm, V: 2.9 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×27.5 mm
Quick Info for the The Imaging Source DFM 36CX290-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C Series |
| FPS: | 60 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.1 MP |
| Scanning Mode: | Rolling Shutter |
