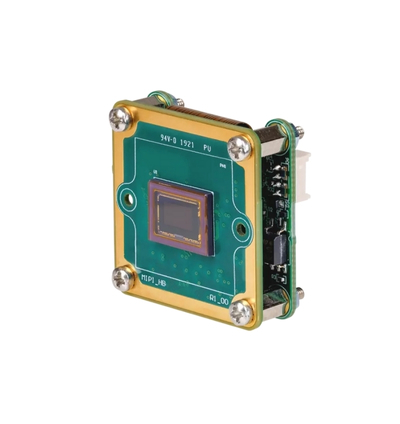

The Imaging Source DFM 36CX296-ML Camera
The DFM 36CX296-ML is a high-performance 36C Series Color FPD-Link III camera designed for embedded vision, robotics, and industrial imaging applications that require precise, high-quality color capture. Featuring the 1/2.9-inch Sony CMOS Pregius IMX296 global shutter sensor, it captures 1440×1080 (1.6 MP) resolution at up to 60 fps, delivering crisp, low-noise images with accurate color reproduction. Its FPD-Link III interface ensures high-speed, reliable data transfer, while trigger and I/O inputs allow flexible synchronization in multi-camera setups. With 10-bit Bayer (RG) output, an M12 lens mount option, and a compact 30×30×27.5 mm design, the DFM 36CX296-ML provides robust and versatile imaging performance for machine vision, automation, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 1,440×1,080 (1.6 MP)
- Frame Rate: 60 fps
- Video Output Format: 10-Bit Bayer (RG)
- Interface: FPD-Link III
- Compatibility: FPD-Link III interfaces
- Sensor Type: CMOS Pregius
- Sensor Model: Sony IMX296
- Shutter Type: Global
- Optical Format: 1/2.9 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Lens Mount: M12x0.5, optional
- Trigger and I/O Inputs: Supported
- Dimensions: 30×30×27.5 mm
Quick Info for the The Imaging Source DFM 36CX296-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C Series |
| FPS: | 60 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 1.6 MP |
| Scanning Mode: | Global Shutter |
