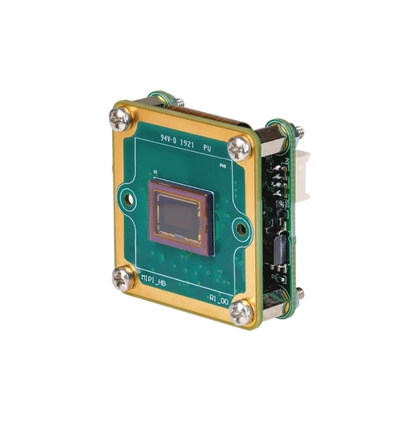

The Imaging Source DFM 36CX297-ML Camera
The DFM 36CX297-ML is a compact, high-speed 36C Series Color FPD-Link III camera designed for embedded vision, industrial imaging, and robotics applications. Featuring the 1/2.9-inch Sony CMOS Pregius IMX297 global shutter sensor, it captures 720×540 (0.4 MP) resolution at up to 120 fps, delivering fast, accurate color images with excellent sensitivity and low noise. Its FPD-Link III interface ensures reliable high-speed data transfer, while trigger and I/O inputs provide flexible synchronization for multi-camera setups. With 10-bit Bayer (RG) output, an M12 lens mount option, and a compact 30×30×27.5 mm design, the DFM 36CX297-ML offers versatile, high-performance imaging for automation, machine vision, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 720×540 (0.4 MP)
- Frame Rate: 120 fps
- Video Output Format: 10-Bit Bayer (RG)
- Interface: FPD-Link III
- Compatibility: FPD-Link III interfaces
- Sensor Type: CMOS Pregius
- Sensor Model: Sony IMX297
- Shutter Type: Global
- Optical Format: 1/2.9 inch
- Pixel Size: H: 6.9 µm, V: 6.9 µm
- Lens Mount: M12x0.5, optional
- Trigger and I/O Inputs: Supported
- Dimensions: 30×30×27.5 mm
Quick Info for the The Imaging Source DFM 36CX297-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | Under 1 MP |
| Scanning Mode: | Global Shutter |
