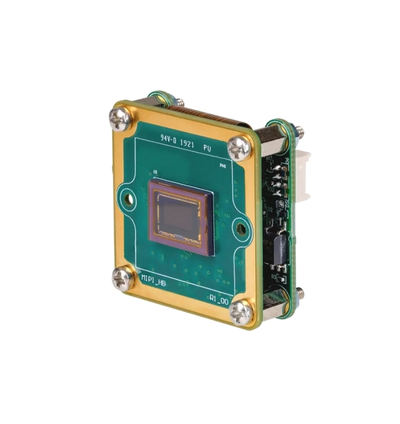

The Imaging Source DMM 36CR0234-ML Camera

The DMM 36CR0234-ML is a high-speed 36C Series Monochrome FPD-Link III camera designed for industrial imaging, embedded vision, and machine vision applications. Equipped with the 1/2.6-inch onsemi CMOS AR0234CS global shutter sensor, it captures 1920×1200 (2.3 MP) resolution at up to 100 fps, delivering fast, accurate monochrome images with a 10-bit dynamic range. Its FPD-Link III interface ensures high-speed, reliable data transfer, and the trigger and I/O inputs provide flexibility for synchronized imaging in multi-camera systems. With an M12 lens mount option and a compact 30×30×27.5 mm design, the DMM 36CR0234-ML is ideal for automated inspection, robotics, and high-speed imaging systems that require precision, performance, and easy integration.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 100 fps
• Video Output Format: 10-Bit Monochrome
• Interface: FPD-Link III
• Compatibility: FPD-Link III interfaces
• Sensor Type: CMOS
• Sensor Model: onsemi AR0234CS
• Shutter Type: Global
• Optical Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Lens Mount: M12x0.5, optional
• Dimensions: 30×30×27.5 mm
