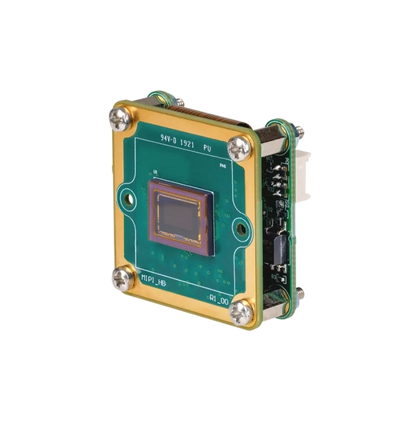

The Imaging Source DMM 36CX290-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
This 36C Series monochrome FPD-Link III camera integrates the Sony IMX290 STARVIS rolling-shutter sensor to capture 2.1 MP at up to 60 fps. Its 2.9 µm pixels support detailed imaging for embedded and industrial applications, while FPD-Link III connectivity enables a direct link to compatible processing hardware. The slim 30×30×27.5 mm module fits tight spaces, and the optional M12 lens mount offers flexible optics selection.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 1,920×1,080 (2.1 MP)
- Frame Rate: 60 fps
- Video Output Format: 12-Bit Monochrome
- Interface (Optical)
- Sensor Type: CMOS STARVIS
- Sensor Specification: Sony IMX290
- Shutter: Rolling
- Format: 1/2.8 inch
- Pixel Size: H: 2.9 µm, V: 2.9 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DMM 36CX290-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C Series |
| FPS: | 60 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.1 MP |
| Scanning Mode: | Rolling Shutter |
