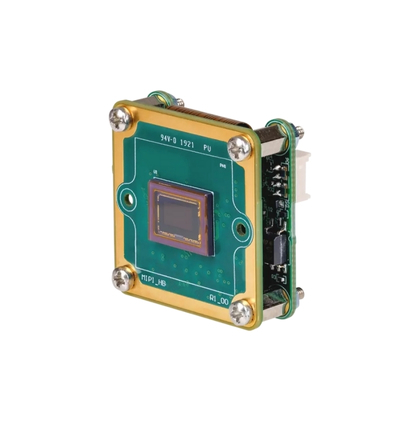

The Imaging Source DMM 36CX296-ML Camera

This 36C Series monochrome FPD-Link III camera integrates the Sony IMX296 Pregius global-shutter sensor to capture 1.6 MP at up to 60 fps with sharp results on moving targets. Its 3.45 µm pixels support clean, low-noise imaging, while trigger and I/O inputs enable precise system timing. The compact 30×30×27.5 mm design and optional M12 lens mount make it straightforward to embed in space-constrained vision systems using FPD-Link III connectivity.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,440×1,080 (1.6 MP)
• Frame Rate: 60 fps
• Video Output Format: 10-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS Pregius
• Sensor Specification: Sony IMX296
• Shutter: Global
• Format: 1/2.9 inch
• Pixel Size H: 3.45 µm, V: 3.45 µm
• Lens Mount: M12x0.5, optional
