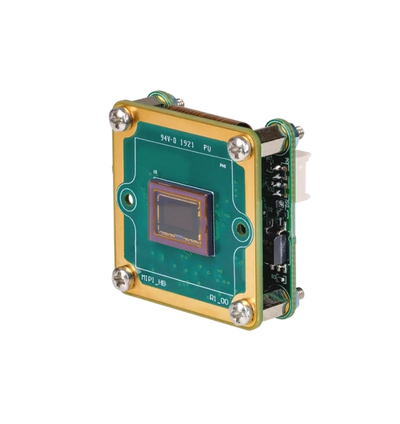

The Imaging Source DMM 36CX297-ML Camera

This 36C Series monochrome FPD-Link III camera integrates the Sony IMX297 Pregius global-shutter sensor to deliver 0.4 MP capture at up to 120 fps. Large 6.9 µm pixels provide high sensitivity for clean imaging, while trigger and I/O inputs support precise system timing. The compact 30×30×27.5 mm design and optional M12 lens mount make it straightforward to embed in space-constrained vision systems using FPD-Link III connectivity.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 720×540 (0.4 MP)
• Frame Rate: 120 fps
• Video Output Format: 10-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS Pregius
• Sensor Specification: Sony IMX297
• Shutter: Global
• Format: 1/2.9 inch
• Pixel Size: H: 6.9 µm, V: 6.9 µm
• Lens Mount: M12x0.5, optional
