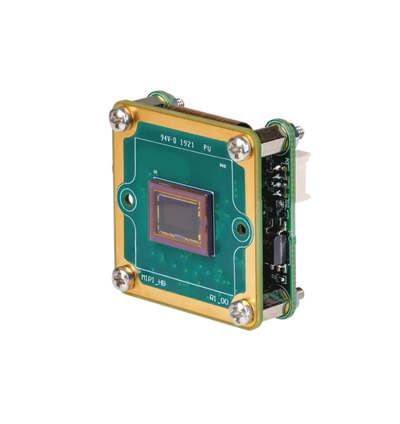

The Imaging Source DMM 36CX335-ML Camera
The DMM 36CX335-ML is a high-performance 36C Series Monochrome FPD-Link III camera designed for industrial vision, automation, and high-speed imaging applications. Featuring the 1/2.8-inch Sony CMOS STARVIS IMX335 rolling shutter sensor, it captures 2592×1944 (5 MP) resolution at up to 30 fps, delivering detailed monochrome images with excellent low-light performance and a 12-bit dynamic range. The FPD-Link III interface ensures reliable, high-speed data transfer, while 12-bit and 10-bit monochrome output delivers superior tonal depth and precision. With an M12 lens mount option and a compact 30×30×27.5 mm design, the DMM 36CX335-ML is ideal for machine vision, robotics, and automated inspection systems requiring precise imaging and seamless integration.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 2,592×1,944 (5 MP)
- Frame Rate: 30 fps
- Video Output Format: 12-Bit Monochrome, 10-Bit Monochrome
- Interface: FPD-Link III
- Compatibility: FPD-Link III interfaces
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX335
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 2 µm, V: 2 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×27.5 mm
Quick Info for the The Imaging Source DMM 36CX335-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C Series |
| FPS: | 30 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
